printrbot mods

A place for showing my PB modifications.

22'nd of Sept 2012 - A new video.

^Invalid YouTube URL provided

Started on the 15'th of May 2012.

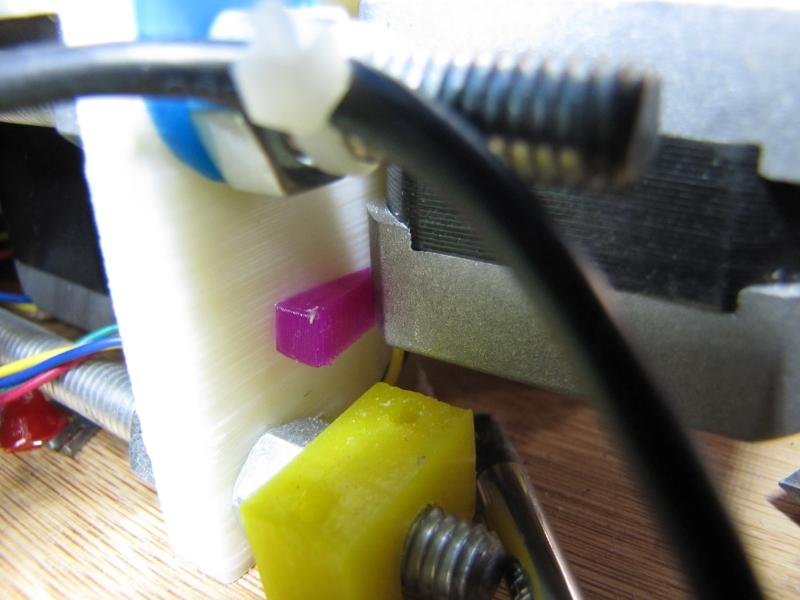

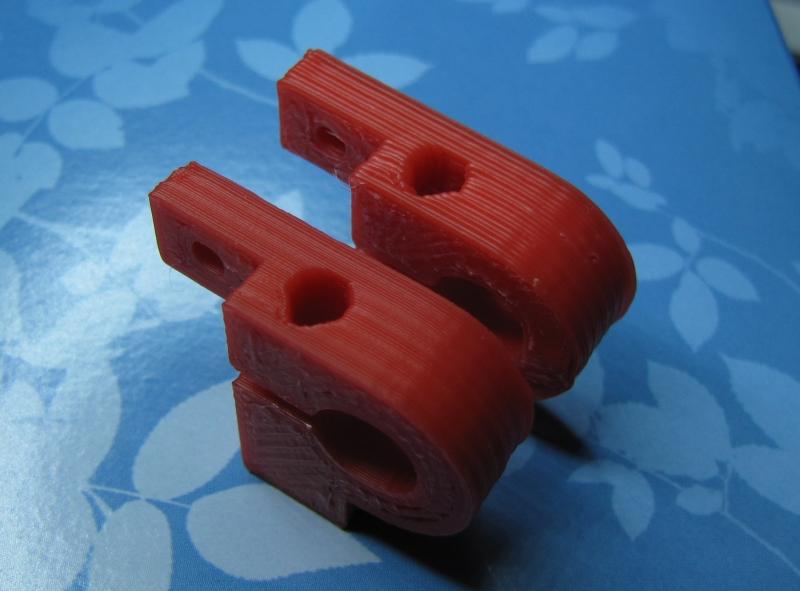

Y axis limit switch poker.





Modified xl-belt pulley.


These are my modified pulleys. Note the repeating pattern in the teeth. This is the same pitch as the Z axis threaded rod and is caused by the a Z-shaft wobbling a bit as the threaded rods rotate.

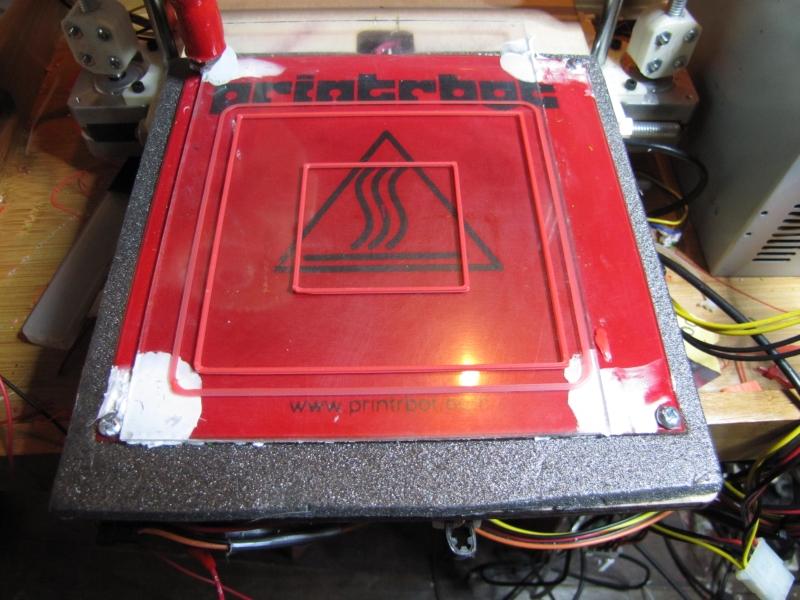

Glass printbed


Depron bed insulator.


Printrbot screwdown.

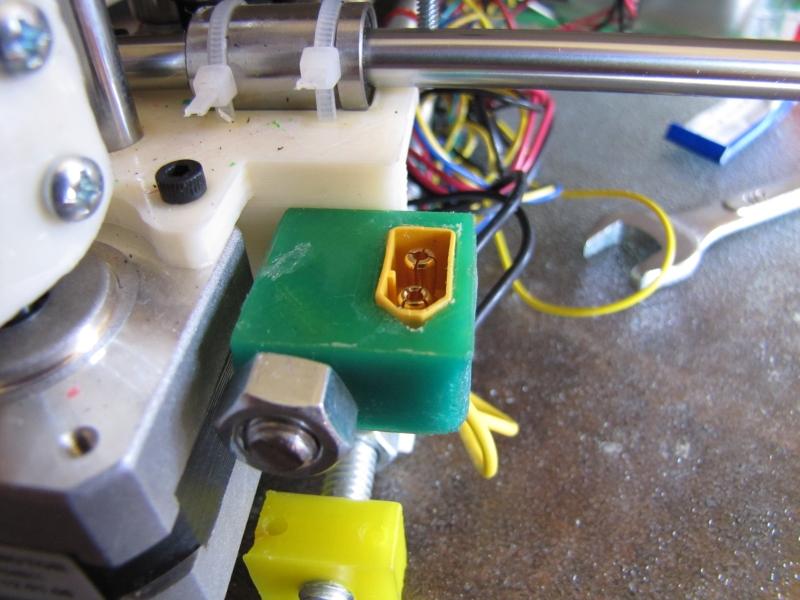

xt60 power plug.


http://www.sparkfun.com/products/10474

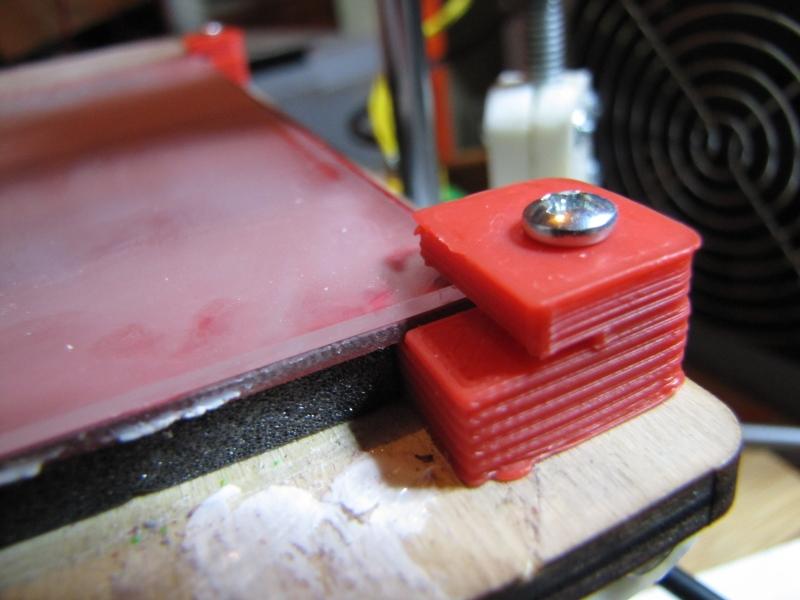

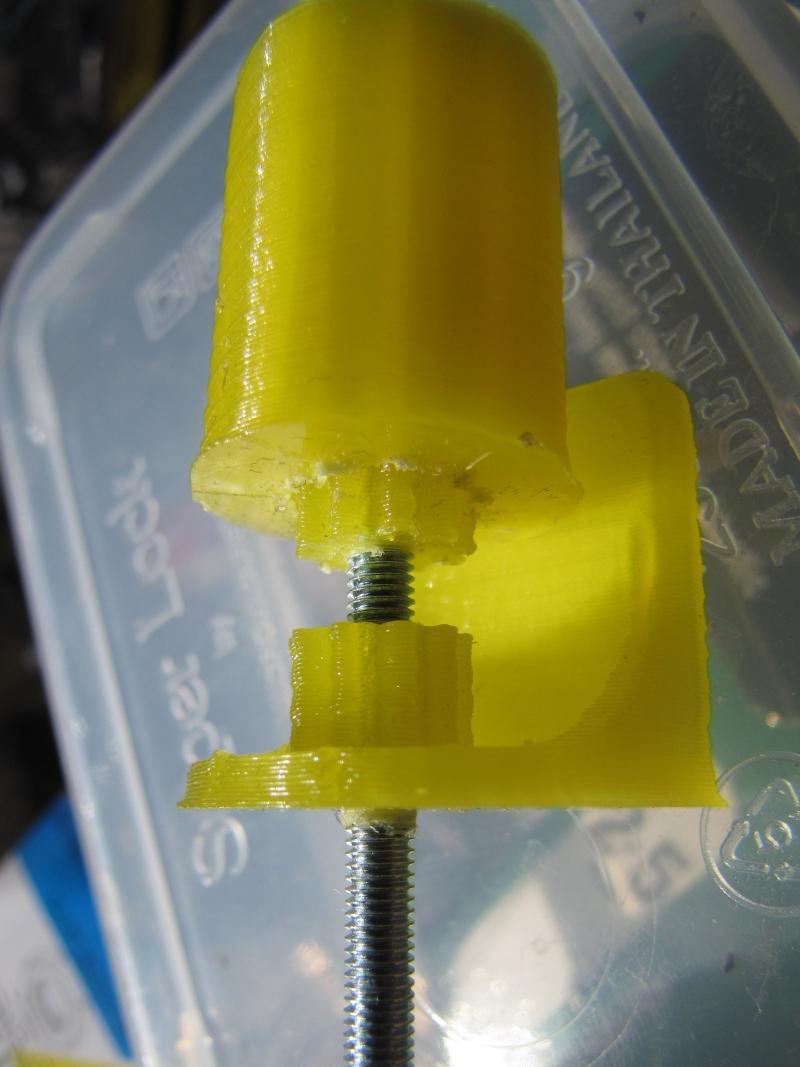

Hot bed standoff and glass clamp.

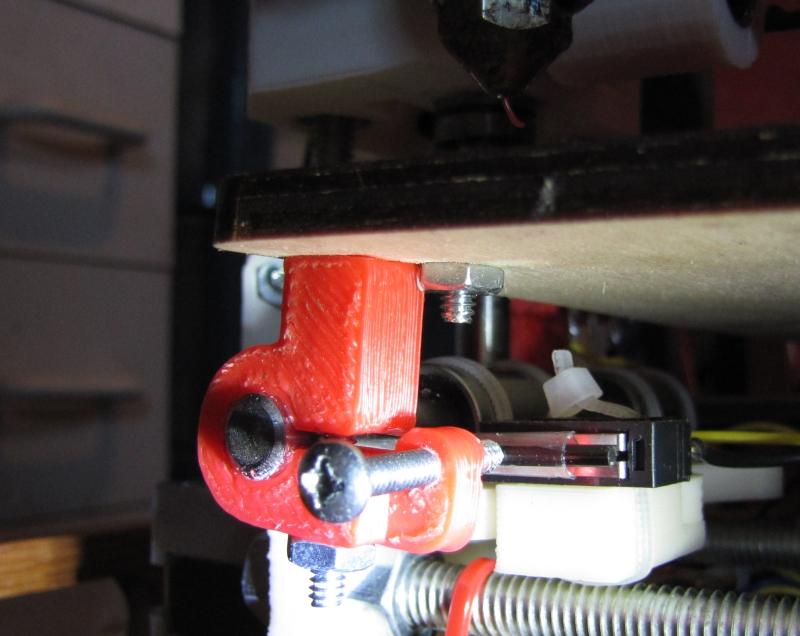

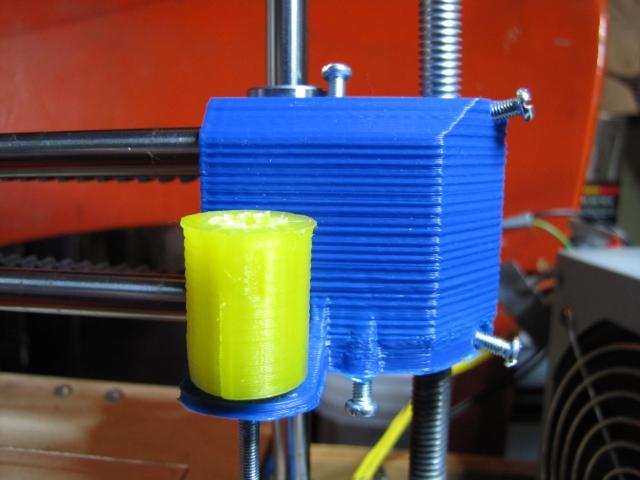

Z axis micro switch jabber.

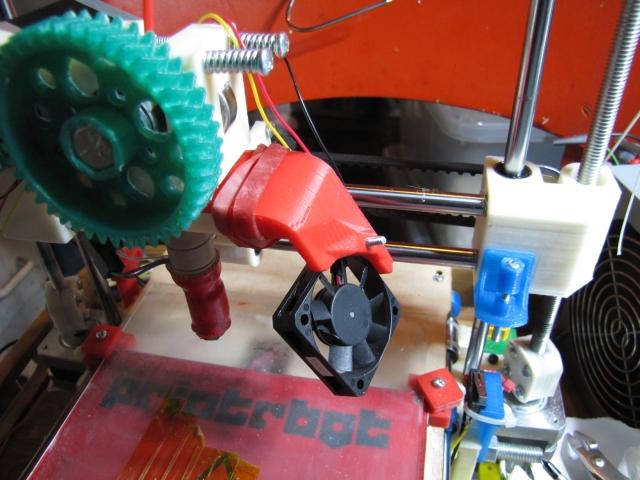

Fan adapter.




New carriage assembly.



Spool A-frame.


Wobble fixed.

I found the main cause of the wobble which has annoyed me for months.

The "wobble" turned out not to be a sideways movement at all but uneven lift was cause the layers to bulge every Z-motor revolution.
The Z-motors rock slightly on their flimsy mounts. The fact the hole aren't in the right place doesn't help.
The threaded rod and smooth rods aren't parallel causing the shaft coupling to flex every revolution.
My temporary fix is 4 wedges glued in place.
The results are pretty good.
printrbot

http://www.thingiverse.com/eddiema
eddie
