My first ebike.
Started Oct 2011. (Edit 2024 - this motor only lasted a year or two. Probably blew a MOSFET - I've never tried to open it for repair)
Golden motor - Magic pie motor.

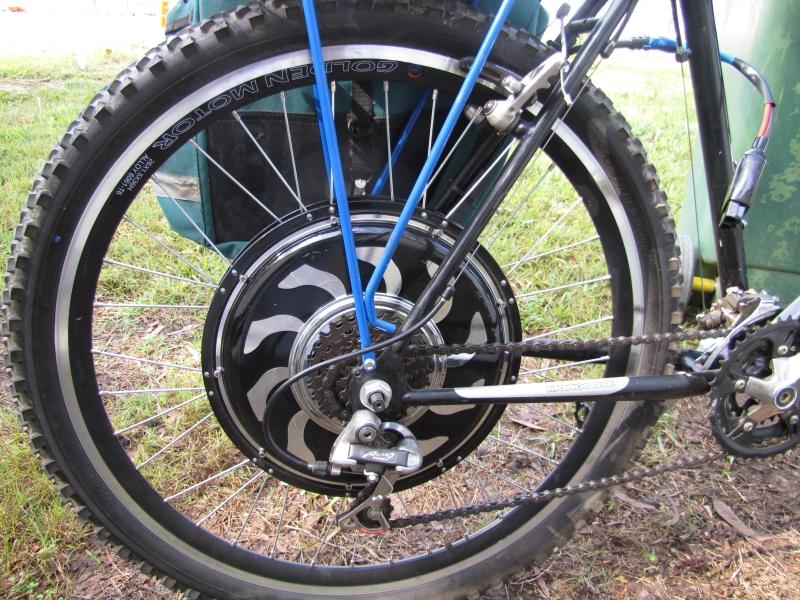

Image The magic pie hub motor.
Bcc6675283bf859300643620c1d1de0d Close up of the colour coded connectors.

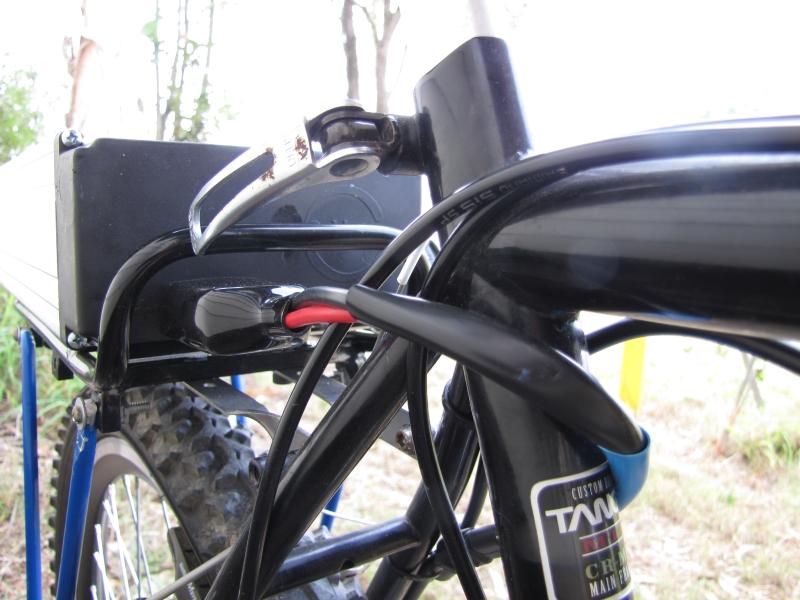

Image The main battery plug.
F16c78cb81502dbcacb1dcf3420f45f0 The throttle is currently up side down.

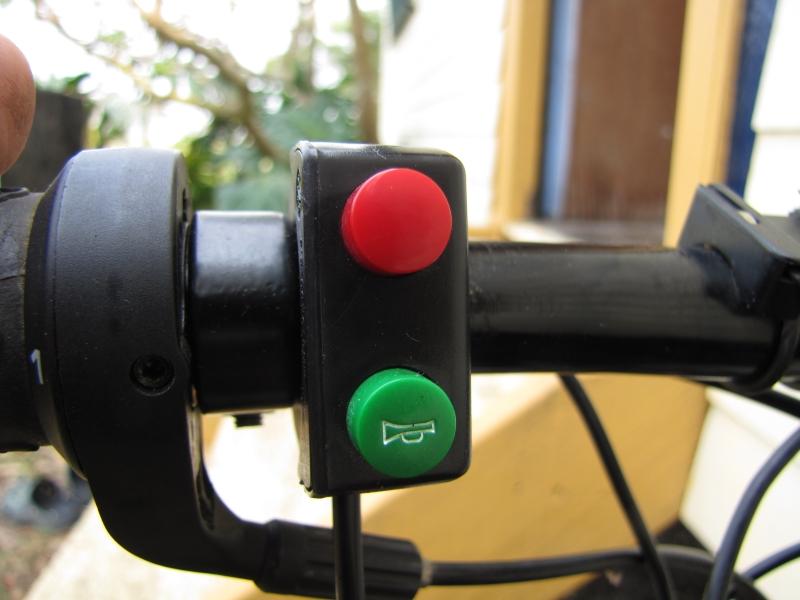

Image The red button is the "cruise" control.
8cd9db0510a404cebd588b951afd4d55 All the excess wiring before trimming.

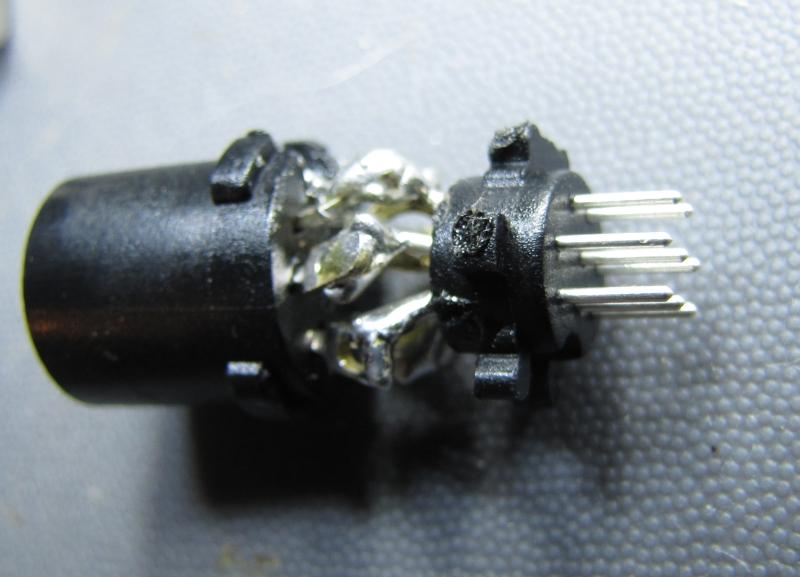

Image My PS2 to DIN-8 adapter.

After replacing the PS2 connector once and having it mangle the first time it came unplugged - I'd had enough of these feeble little things.
With most of the warranty still left I decided not to cut the PS2 line socket from the motor cable. Instead I made an adapter which is glued in place with Sugru. The control cable now has a DIN-8 in place.
