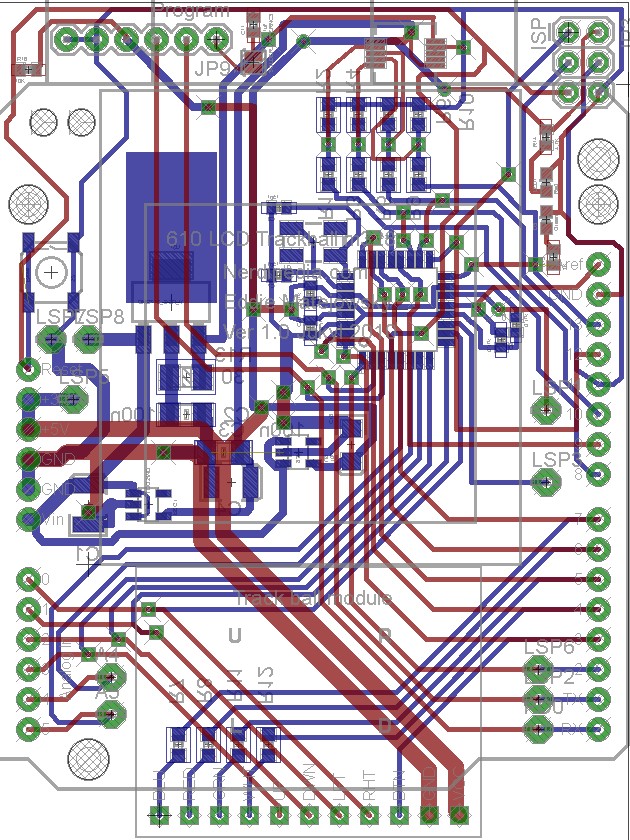

Following on from Nokia colour LCD. I've done a PCB which combines the processor and LCD boards into a single PCB. It retains the arduino pin out so it could still be use as a shield (no micro fitted) or used as an arduino main board. I also brought out the ADC6 and ADC7 pins to solder pads. These are not used on the arduino pro.
I'm not sure I'll actually build it. It was done as part of a transition to cheaper PCB which use a monochrome 3310 display and switches in place of the track ball.

eddie.

Created by eddie. Last Modification: Tuesday 13 of July, 2010 20:47:41 AEST by eddie.
